Amel Super Maramu 2000

Onan MDKAL Exhaust Elbow Replacement

Part 5: Exhaust Mixing Elbow reassembly

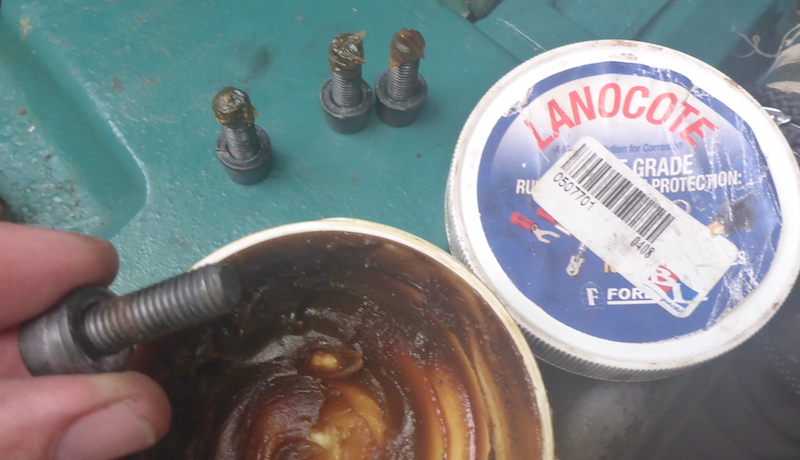

Putting Lanocote on the bolt before reassembly

Note from Bill Kinney SM160 Harmonie: Lanocote is not right for this application
Lanocote will not stand up to the temperatures of a diesel exhaust manifold.
For engine work Bill suggested to use a product called "Never-Seez" that is rated for higher temperatures.
There are lots of others that work, most of them are a suspension of powdered copper.

Note: James Maramu #220 SV Sueno added the Kennedy Space Center uses Phllips unflavoured Milk of Magnesia on the threads of fasteners that will be exposed to high temperatures to allow for easy removal. He has used this solution on exhaust systems of cars and boats for a long time and it really does work.

 Amel Super Maramu 2000 Genset Onan Exhaust Elbow Replacement

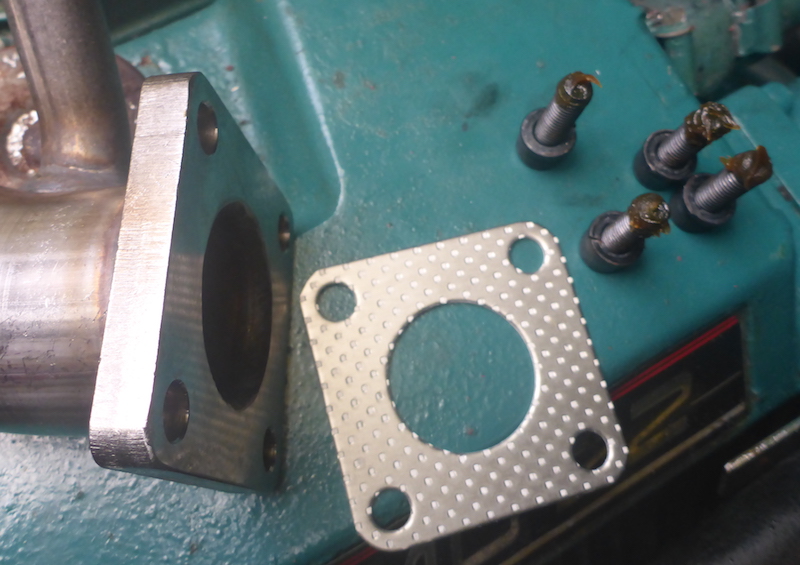

This is where I forgot to add a thin coat of Permatex High Temperature RTV as suggested by Gary

Note from Bill Kinney SM160 Harmonie: with a new gasket, and clean mating surfaces I wouldn't use RTV on this unless I had previous problems with leaks.

Note from Bill Rouse SM2K #387 BeBe: I would not use high temperature RTV on the new part, but would use it if I was refitting the old part because of the pitting in the metal.

 Amel Super Maramu 2000 Genset Onan Exhaust Elbow Replacement

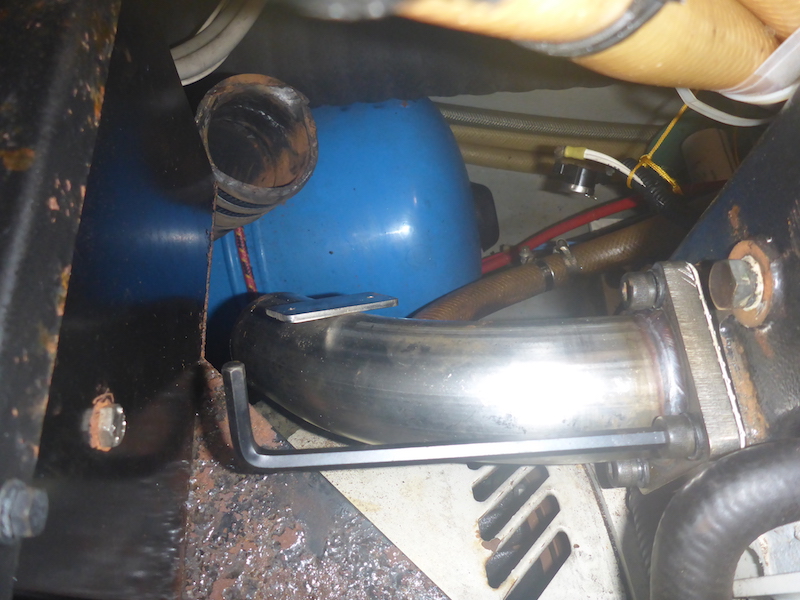

bolt back and gently tight
 Amel Super Maramu 2000 Genset Onan Exhaust Elbow Replacement

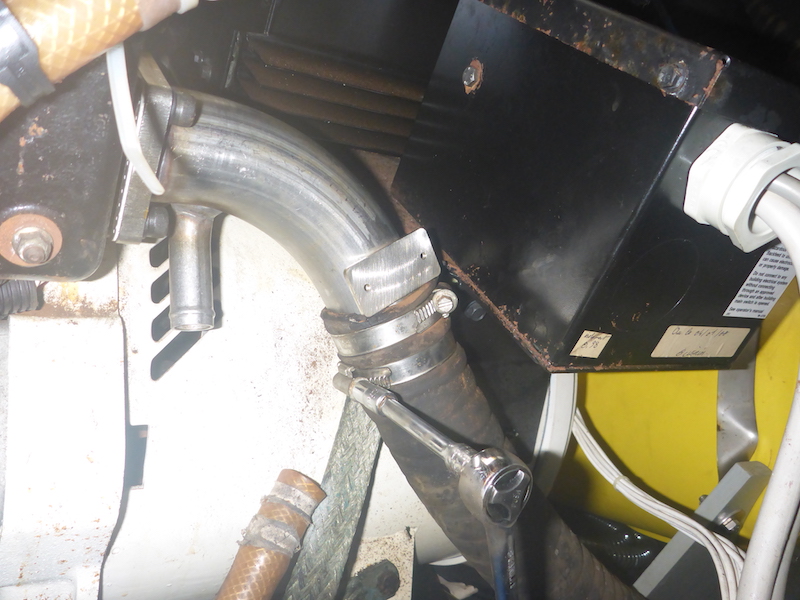

Now re-attaching the exhaust hose with the 2 clamps

Note from Mark SM#275 Creampuff: should have changed the all hose screw clamps

 Amel Super Maramu 2000 Genset Onan Exhaust Elbow Replacement

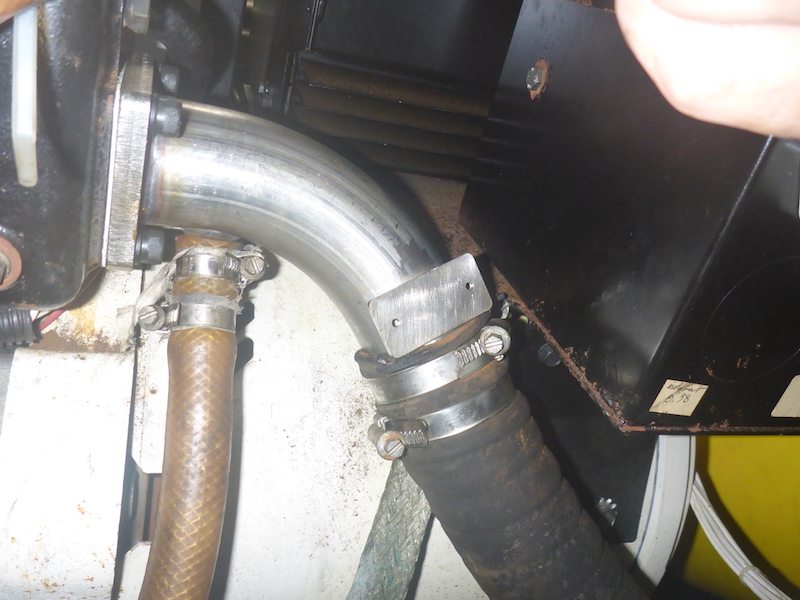

Reconnected the water hose

Note from Mark SM#275 Creampuff: should have changed the all hose screw clamps

 Amel Super Maramu 2000 Genset Onan Exhaust Elbow Replacement

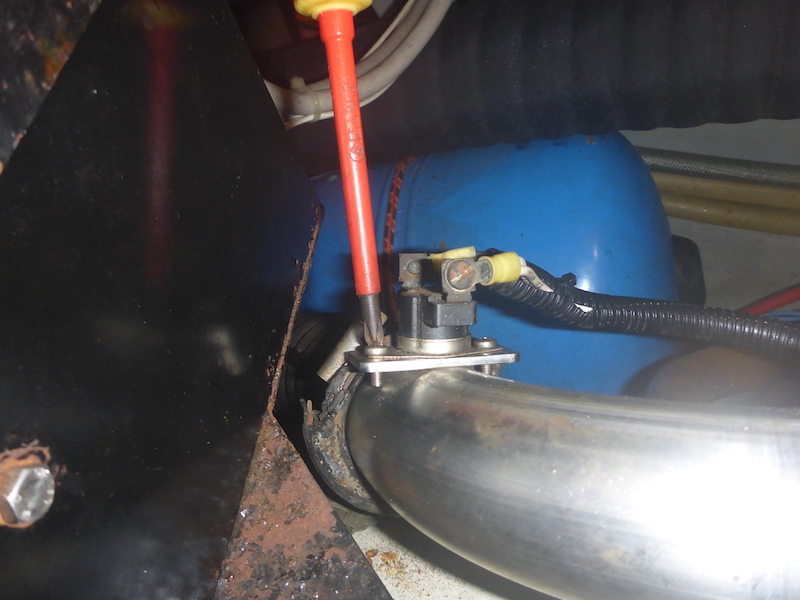

bolt back the exhaust temperature sensor
 Amel Super Maramu 2000 Genset Onan Exhaust Elbow Replacement

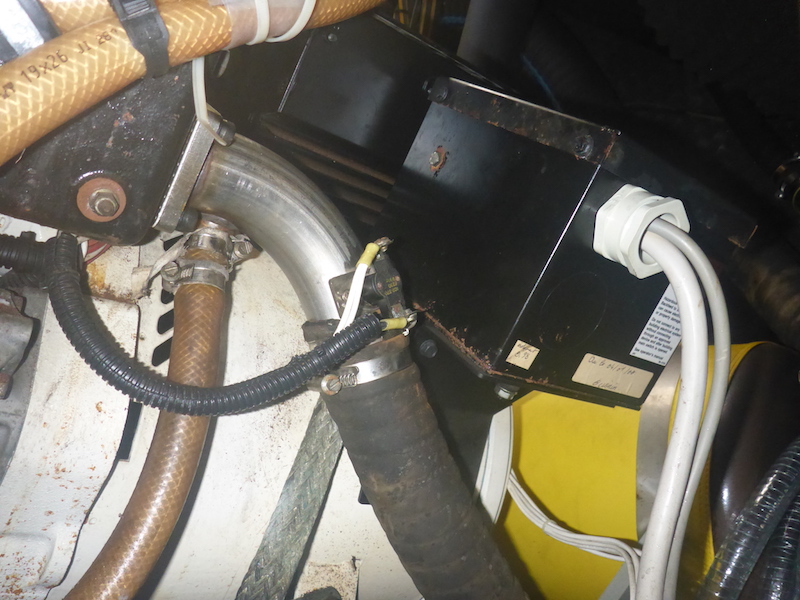

All back together
 Amel Super Maramu 2000 Genset Onan Exhaust Elbow Replacement



Go to: Part 6
cleaning original Exhaust Mixing Elbow to keep as spare
